Infrared electric patio heaters use radiant heat technology to warm people and objects directly, not the air. Infrared heaters operate like the sun warming your skin on a sunny day which make them the perfect solution to keep you warm year-round. Although infrared heat is a great solution to warm your space not all infrared heat is the same. There are three different types of technology to be aware of Short Wave, Medium Wave, and Long Wave infrared heat. Because these three types are heat producing and have different characteristics, it is important to know what sort of infrared we can use for heating situations and how to apply it. In the outline below we will breakdown the pros and cons of each technology to help you determine which type would suit your application best.
Quick History of Infrared
Infrared heat technology has been warming indoor and outdoor applications for decades. Experiments were conducted using a glass prism, the sun, and a thermometer to see if different colors of the rainbow on the visible light spectrum generated higher temperatures. What was discovered was light rays below the color red, that are not visible to human eye, had the highest temperature of all the colors. Today this light is known as “ Infra” (below) Red. Technology has allowed us to harness this concept to create invisible rays of light to heat solid objects such as people and create what infrared patio heating is today.
Types of Infrared Heat
There are three types of infrared technology Short Wave, Medium Wave and Long Wave. The rule of thumb is the shorter the wavelength the “hotter” the infrared heat and the further it travels. The chart below gives a great visual of each.
Long Wave
Heat Source
Low (unit produces 575°F)
Least Radiant Efficiency
40% radiant heat and 60% convective
Heat Distribution
Susceptible to wind dispersal
Warm Up Time
Average 5 minutes
Medium Wave
Heat Source
Moderate (unit produces 1652°F)
Medium Radiant Efficiency
60% radiant heat and 40% convective bi-product
Heat Distribution
Limited susceptibility to wind dispersal
Warm Up Time
Average 30 seconds
Short Wave
Heat Source
High (unit produces 3992°F)
Most Radiant Efficiency
90% radiant heat and 10% convective bi-product
Heat Distribution
Warms people and objects directly
Warm Up Time
Instantaneous
Pros
- Most efficient infrared technology
- Instant warm up time to feel full heat effect
- Not susceptible to wind
- Heat throw travels further
Cons
- Harsh orange glow radiates off the heaters
- Not many design options to choose from
Best Application: These heaters perform well in colder, windier climates.

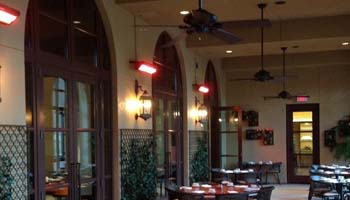

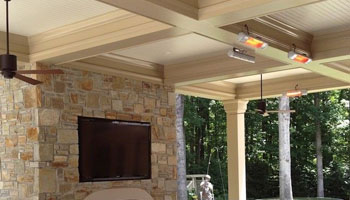

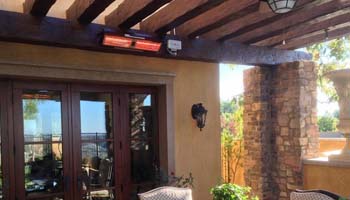

The most efficient type of Infrared heat out of the three options. 90% of the heat that is felt is coming directly from these infrared rays, the other 10% comes from the heat radiated from the objects the rays are warming. The heat projection on short wave heaters is greater than the other technologies meaning you can cover larger spaces with less units.
Top Brands: Solaira, Dimplex and Aura
Shop Short Wave Heaters
Best Application: These heaters perform well mild climates where ambient temperature is 60°

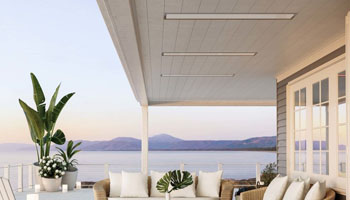

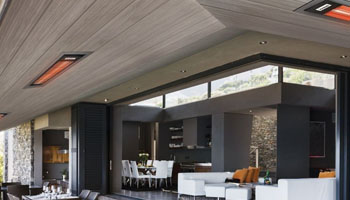

Medium wave heaters typically have quartz element tubes that produce radiant heat. 60% of the heat that is generated comes directly from the infrared rays while the other 40% comes from the heat radiated from the objects the rays are warming. Medium wave heaters are popular for the different styles available and the warm ambient glow that is reflected.
Top Brands: Bromic, Infratech, and Eurofase
Shop Medium Wave Heaters
Best Application: These heaters perform well in indoor or enclosed covered patios

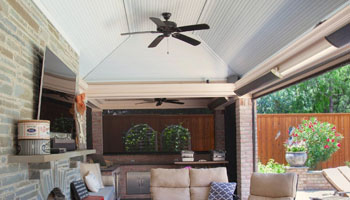

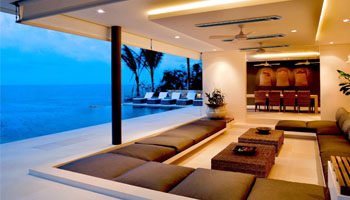

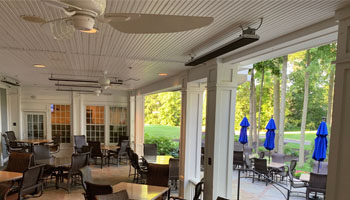

The least efficient type of Infrared heat out of the three options. 40% of the heat that is felt is coming directly from these infrared rays, the other 60% comes from the heat radiated from the objects the rays are warming. Long wave heaters perform in indoor applications or covered semi
Top Brands: Heatstrip, Radtec, Victory
Shop Long Wave Heaters
