Infratech’s Contactor Panel with Digital Timer enhances the Value Control options by adding the functionality of timer capabilities to simple on/off switches and duplex switches.The contactor panel is designed for use with all Infratech heaters, single or dual element.

Contactor Panel Benefits

Peace of mind in integrating a timer without having to expand your budget on custom dimming panels and controls.

Ability to mix and match heaters to be controlled by a single switch.

Enables the integration of timers and other 120 VAC controls, including smart switches.

Included with Purchase:

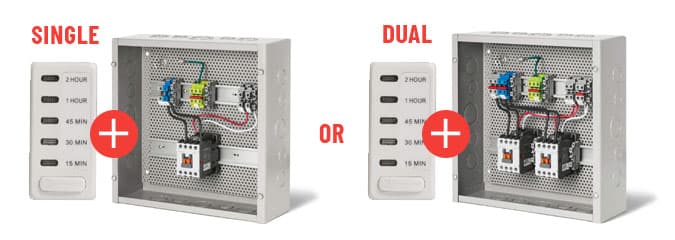

single and dual contractor panels and switches

Purchase Separately

Switches: Switches are not included; you can order an on/off or duplex switch from Infratech or you can use your own 3rd party 120V switch.
Faceplate: You will need to purchase a faceplate of your choice, the switches above will only include the “guts.”
Gang Box: You will need topurchase a standard two gang box, this will house both the switch and the timer like in photo below.
Flush mount access door: If you are recessing the panels into the wall, you will need to purchase the access door separately.

 This is a (2) part system that must be ordered a la carte for a complete unit. Panel + Switch = Complete unit.
Contactor panel must be installed indoors in a dry well-ventilated space.

How it Works

Contactor panel can be ordered as a single contactor, or a dual contactor panel and whichever heaters are connected to each contactor will be controlled together.
﻿
Each contactor in the panel can handle up to 6,000 watts max at 240VAC.
Wattages do not need to match, but they cannot exceed 6,000 watts.
Example: A 4,000 watt Single element Heater and a 2,000 watt single element heater can both be controlled at the same time and operate on a single contactor.

A 4,000 watt Single element Heater and a 2,000 watt single element heater can both be controlled at the same time and operate on a single contactor

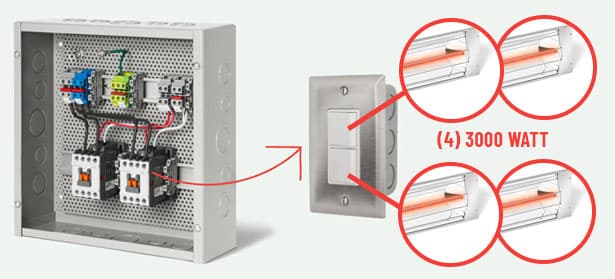

Example: (4) 3,000 watt heaters can be controlled in pairs of two on a dual contactor panel.

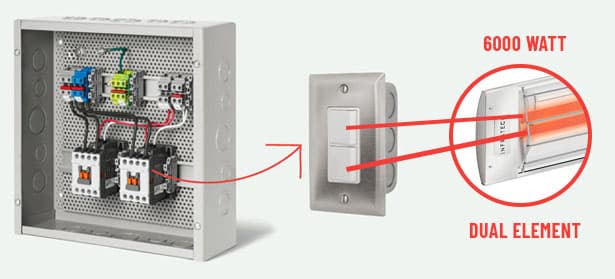

Example: You can control a 6,000 watt dual element heater with a dual contactor panel

Contactor Panel Ordering Guide

STEP 1

Do you need a single or dual contactor?

Single

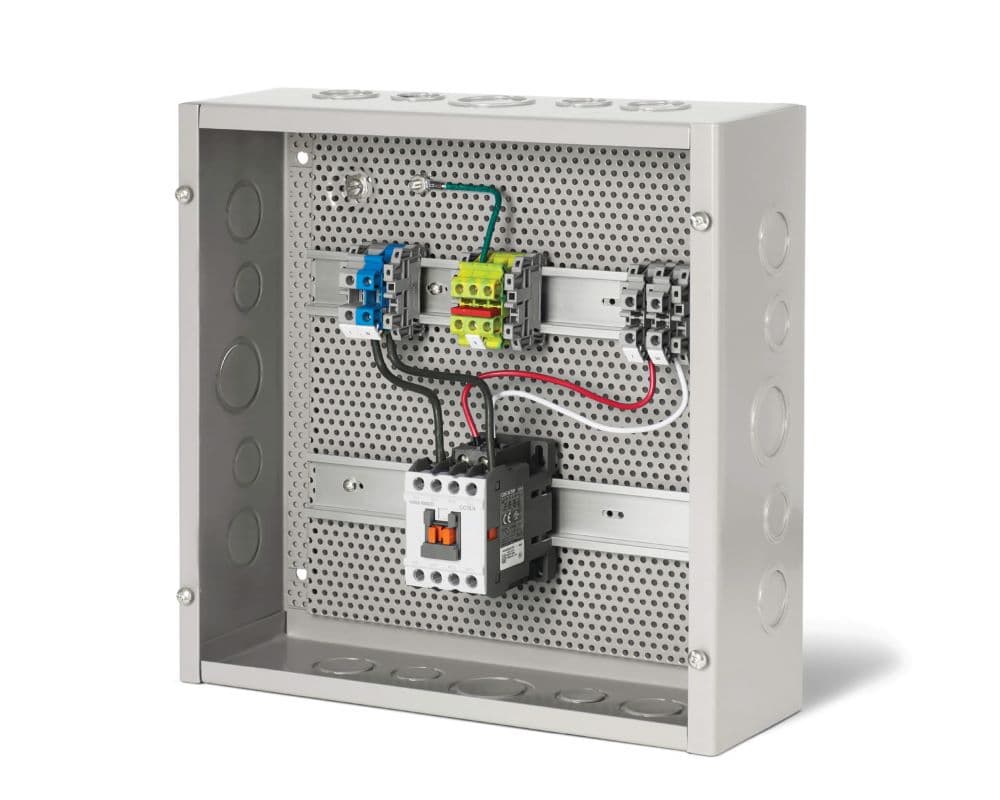

Purchase 14-4700, Continue to Step 2.

Dual

Purchase 14-4710, Continue to Step 2.

STEP 2

Do you want to install the panel recessed into the wall or surface mounted on the wall?

Recessed

Purchase 14-4790, Continue to Step 3.

Surface

Continue to Step 3

STEP 3

Switches are not included; would you like to add a switch?

Yes

Single On/Off: Order 15-1715﻿

﻿Dual On/Off: Order 15-1710﻿

No

Your purchases are complete

﻿Shop Contractor Panels﻿
